  • TUNGALOY DDJNR2525M1506 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

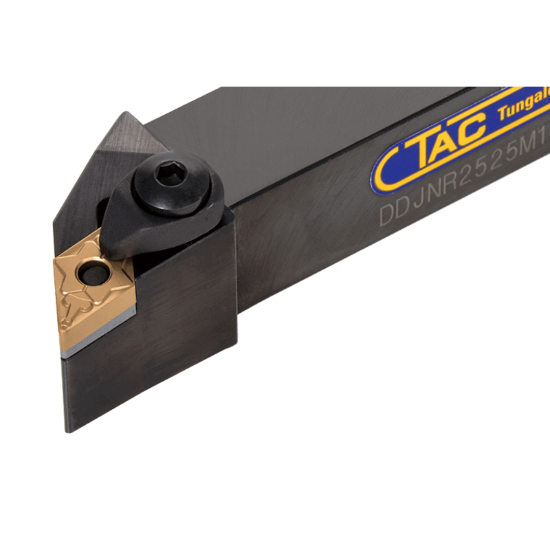

Picture of TUNGALOY DDJNR2525M1506 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY DDJNR2525M1506 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: DDJNR2525M1506

ISO: DDJNR2525M1506

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802945
Delivery date: 3-5 days
$190.05

Important Notes

Neg,J style, 93deg Approach

Details

One-Double toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 15 "44"
Shank/Pilot Dia 0.9843 25.00MM
Clearance Angle 27.0°
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Tool Material Steel
Lead Angle 93°
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Right
Inter/Extern External
