  • TUNGALOY DDJNR2020K15 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.787 Shank

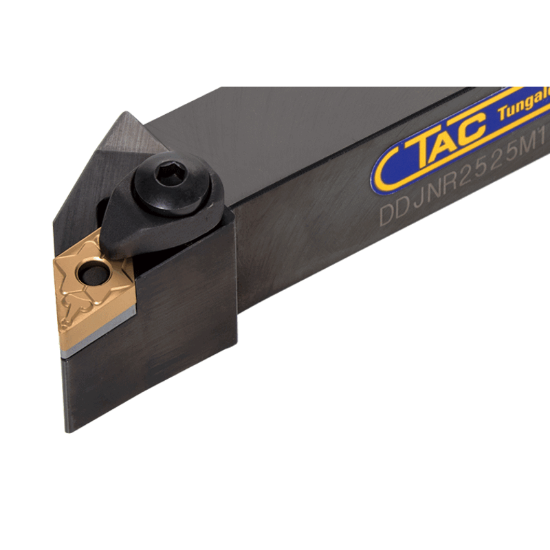

Picture of TUNGALOY DDJNR2020K15 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.787 Shank

TUNGALOY DDJNR2020K15 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.787 Shank

ANSI: DDJNR2020K15

ISO: DDJNR2020K15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802942
Delivery date: 3-5 days
$178.80

Important Notes

Neg,J style, 93deg Approach

Details

One-Double toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Clearance Angle 27.0°
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.9213 125.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
