  • TUNGALOY DDJNL2525M1506 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

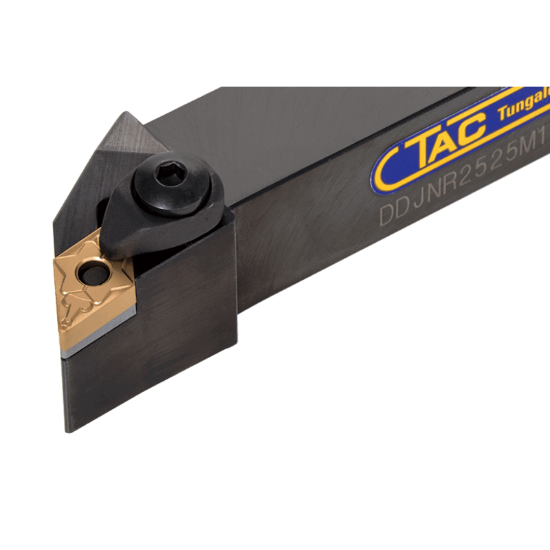

Picture of TUNGALOY DDJNL2525M1506 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY DDJNL2525M1506 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: DDJNL2525M1506

ISO: DDJNL2525M1506

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802937
Delivery date: 3-5 days
$190.05

Important Notes

Neg,J style, 93deg Approach

Details

One-Double toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 15 "44"
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 93°
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Insert Style DN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
