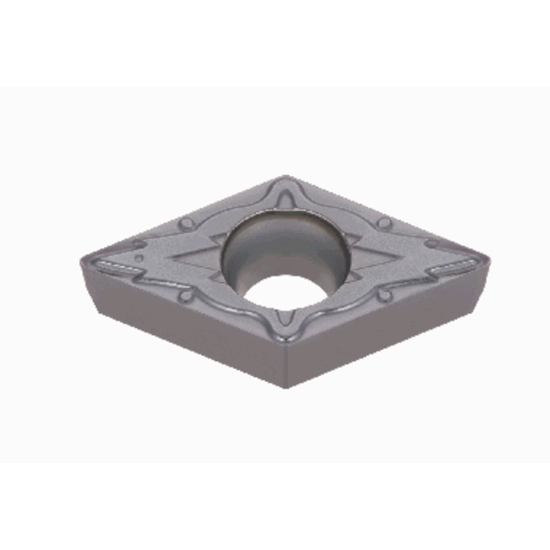

Picture of TUNGALOY DCMT21.50.5 PSF NS9530 Insert 55.0° 0.008 Corner Radius

TUNGALOY DCMT21.50.5 PSF NS9530 Insert 55.0° 0.008 Corner Radius

ANSI: DCMT21.50.5 PSF NS9530

ISO: DCMT070202 PSF NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6998468
Delivery date: 3-5 days
$6.51

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 7deg relief ang., M class, 55deg rhombic insert, for finishing

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Finishing
Insert Type Positive
Application Turning Insert
Package Size 10
Grade NS9530
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 07 "21"
Corner Radius 0.0080 0.20MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
