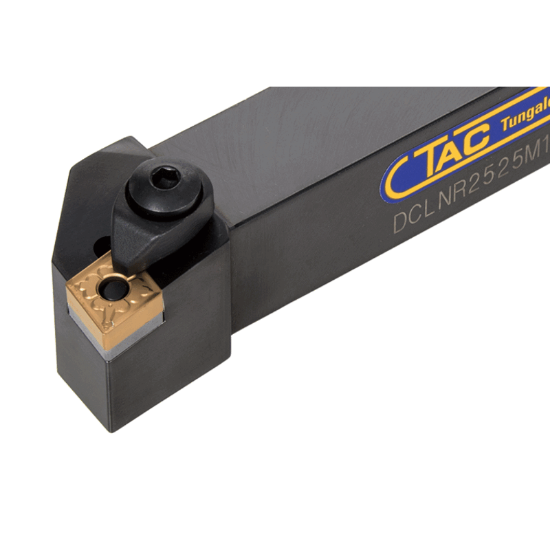

Picture of TUNGALOY DCLNR2525M12 Stick Tool 80.0° Insert Steel Square 0.984 Shank

TUNGALOY DCLNR2525M12 Stick Tool 80.0° Insert Steel Square 0.984 Shank

ANSI: DCLNR2525M12

ISO: DCLNR2525M12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802880
Delivery date: 3-5 days
$189.60

Details

One-Double toolholder with 95deg approach angle, for negative 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 95°
Insert Size Ic 12 "43"
Overall Len 5.9055 150.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
