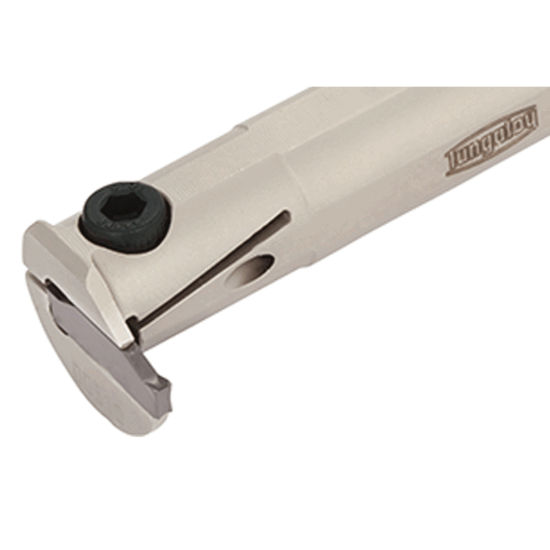

Picture of TUNGALOY CTIR16-5T05-D20 Clamp Down Grooving,Groove Turning Boring Bar Steel Round 1.000 Shank

TUNGALOY CTIR16-5T05-D20 Clamp Down Grooving,Groove Turning Boring Bar Steel Round 1.000 Shank

ANSI: CTIR16-5T05-D20

ISO: CTIR16-5T05-D20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6880705
Delivery date: 3-5 days
$344.10

Details

Boring bars for Internal grooving & turning

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Application Int.Groove Turning, Int.Grooving
Insert Application General Purpose
Made In USA No
Insert Type Positive
Dimensional Specifications
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Min Bore 1.2500
Cutting & Machining Properties
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DT
