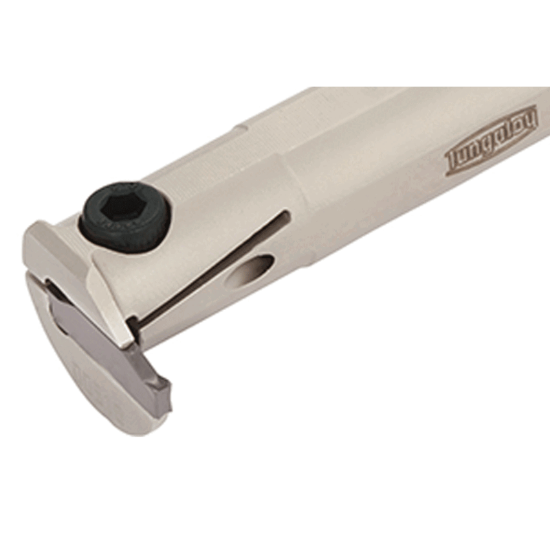

Picture of TUNGALOY CTIL32-8T05-D370 Clamp Down Grooving,Groove Turning Boring Bar Steel Round 1.259 Shank

TUNGALOY CTIL32-8T05-D370 Clamp Down Grooving,Groove Turning Boring Bar Steel Round 1.259 Shank

ANSI: CTIL32-8T05-D370

ISO: CTIL32-8T05-D370

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6860893
Delivery date: 3-5 days
$409.15

Details

Boring bars for Internal grooving & turning

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 1.2598 32.00MM
Machine Side Connection Type Cylindrical
Min Bore 1.4567
Insert Size Ic 8
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Style DT
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
