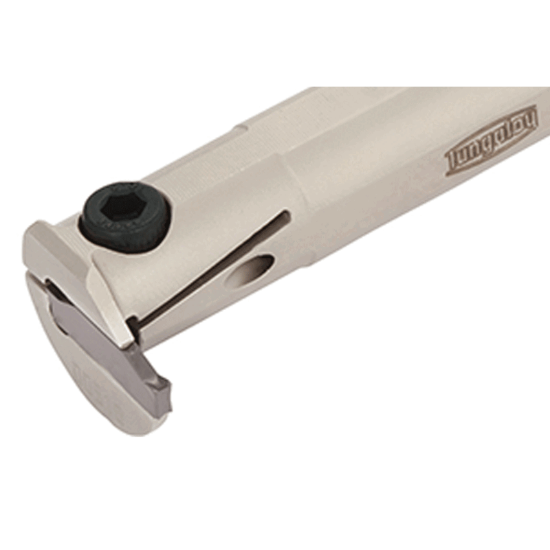

Picture of TUNGALOY CTIL20-3T06-D250 Clamp Down Grooving,Groove Turning Boring Bar Steel Round 0.787 Shank

TUNGALOY CTIL20-3T06-D250 Clamp Down Grooving,Groove Turning Boring Bar Steel Round 0.787 Shank

ANSI: CTIL20-3T06-D250

ISO: CTIL20-3T06-D250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6860643
Delivery date: 3-5 days
$282.60

Details

Boring bars for Internal grooving & turning

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Application Int.Groove Turning, Int.Grooving
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Min Bore 0.9843
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DT
Hand R/L Left
