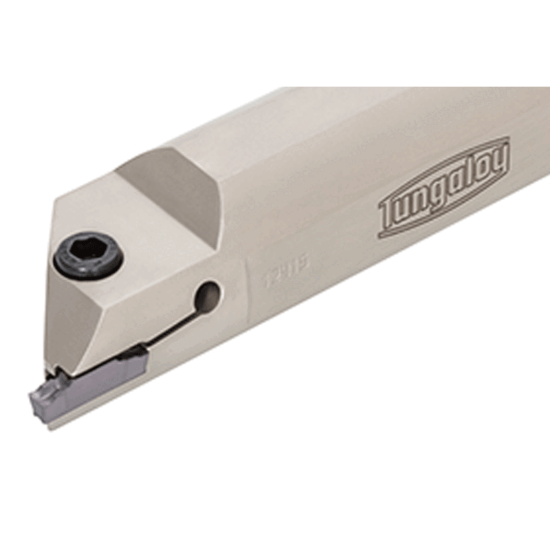

Picture of TUNGALOY CTIFR25-5T05-D270 Clamp Down Face Grooving Boring Bar Steel Round 0.984

TUNGALOY CTIFR25-5T05-D270 Clamp Down Face Grooving Boring Bar Steel Round 0.984

ANSI: CTIFR25-5T05-D270

ISO: CTIFR25-5T05-D270

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723600
Delivery date: 3-5 days
$374.20

Details

Face Grooving , Face Grooving & Turning , Int. Face Grooving , Int. Face Grooving & Turning ,

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Application Face Grooving
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Min Bore 1.0551
Machine Side Connection Type Cylindrical
Insert Size Ic 5, 6
Tool Material Steel
Overall Len 7.8740 200.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,DT,SG,ST
Hand R/L Right
