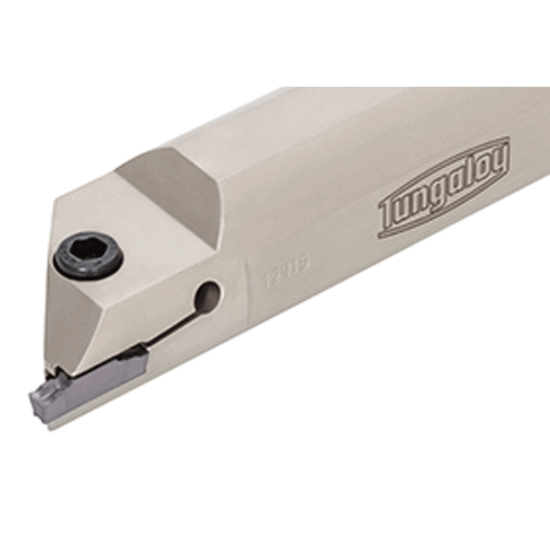

Picture of TUNGALOY CTIFR20-5T05-D22 Clamp Down Face Grooving Boring Bar Steel Round 1.250

TUNGALOY CTIFR20-5T05-D22 Clamp Down Face Grooving Boring Bar Steel Round 1.250

ANSI: CTIFR20-5T05-D22

ISO: CTIFR20-5T05-D22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723629
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Face Grooving , Face Grooving & Turning , Int. Face Grooving , Int. Face Grooving & Turning ,

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Overall Len 10.0000 254.00MM
Insert Size Ic 6, 5
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Min Bore 1.3310
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
Inter/Extern Internal
Insert Style DG,DT,SG,ST
