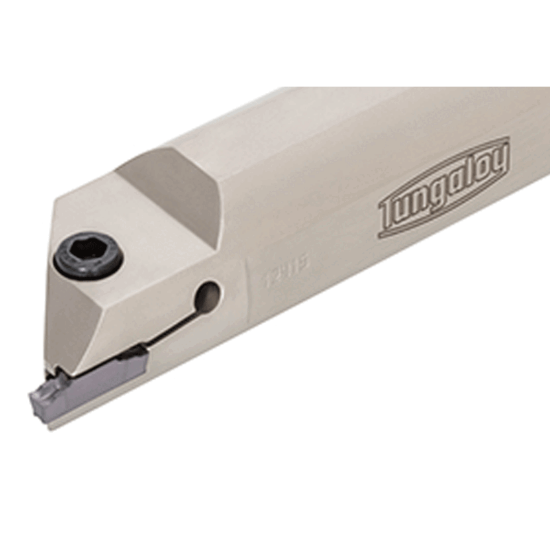

Picture of TUNGALOY CTIFL20-5T05-D22 Clamp Down Face Grooving Boring Bar Steel Round 1.250

TUNGALOY CTIFL20-5T05-D22 Clamp Down Face Grooving Boring Bar Steel Round 1.250

ANSI: CTIFL20-5T05-D22

ISO: CTIFL20-5T05-D22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723633
Delivery date: 3-5 days
$466.00

Details

Face Grooving , Face Grooving & Turning , Int. Face Grooving , Int. Face Grooving & Turning ,

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Face Grooving
Dimensional Specifications
Insert Size Ic 5, 6
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Min Bore 1.3310
Overall Len 10.0000 254.00MM
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,DT,SG,ST
