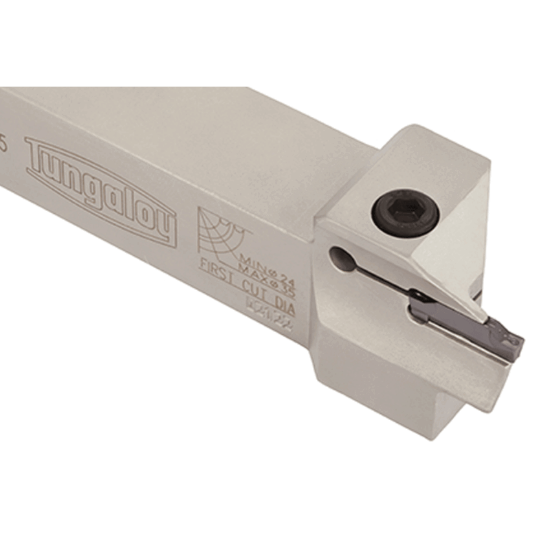

Picture of TUNGALOY CTFL2525-6T25-048070 Clamp Down Face Grooving Stick Tool Steel Square 0.984

TUNGALOY CTFL2525-6T25-048070 Clamp Down Face Grooving Stick Tool Steel Square 0.984

ANSI: CTFL2525-6T25-048070

ISO: CTFL2525-6T25-048070

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6860792
Delivery date: 3-5 days
$243.50

Details

Toolholders for deep face grooving & turning

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Face Grooving
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Max Dia Cut Off 2.7559
Insert Size Ic 6
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Min Bore 1.8898
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,DT,SG,ST
Hand R/L Left
