  • TUNGALOY CSDPN2525M4 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.984 Shank

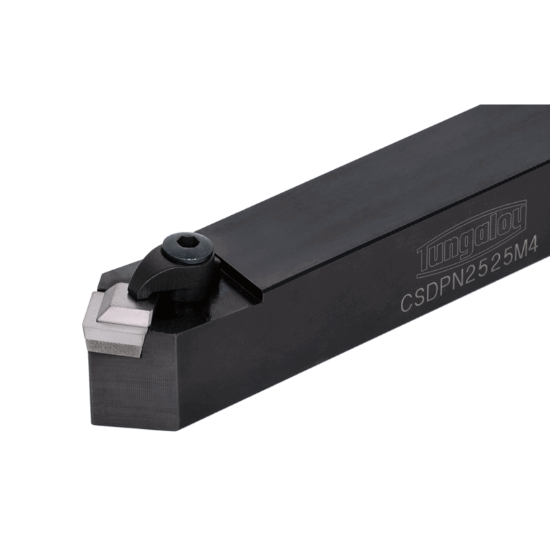

Picture of TUNGALOY CSDPN2525M4 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY CSDPN2525M4 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.984 Shank

ANSI: CSDPN2525M4

ISO: CSDPN2525M4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802488
Delivery date: 3-5 days
$136.85

Important Notes

Posi,D style, 45deg Approach

Details

Clamp-on toolholder with 45deg approach angle, for positive square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Made In USA No
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 45°
Clearance Angle 40.0°
Insert Size Ic 09 "32"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Neutral
Insert Style SP
