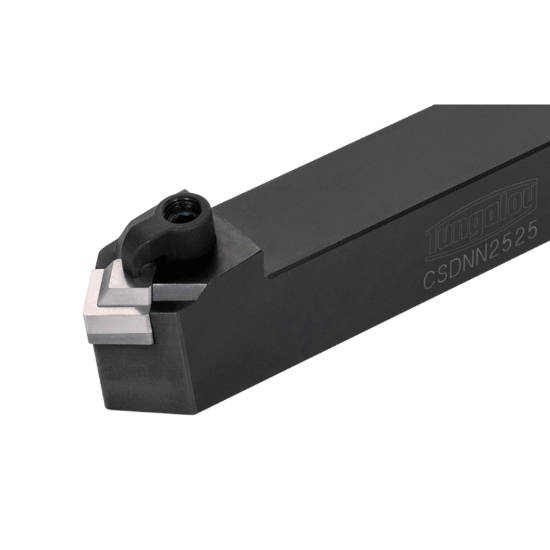

Picture of TUNGALOY CSDNN2525 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY CSDNN2525 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.984 Shank

ANSI: CSDNN2525

ISO: CSDNN2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802485
Delivery date: 3-5 days
$128.25

Important Notes

Neg,D style, 45deg Approach

Details

Clamp-on toolholder with 45deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Clearance Angle 40.0°
Lead Angle 45°
Insert Size Ic 12 "43"
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
Hand R/L Neutral
