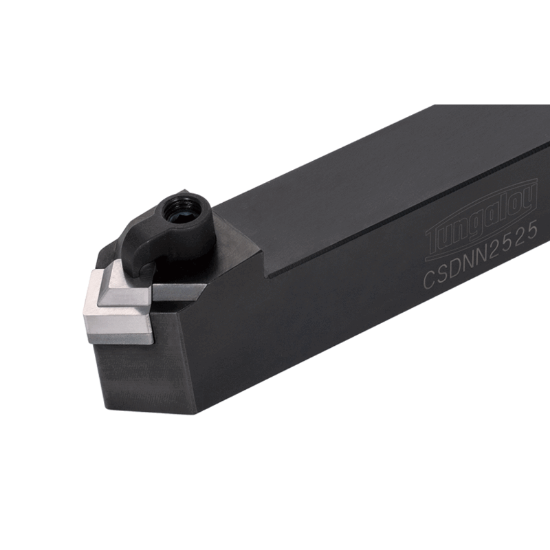

Picture of TUNGALOY CSDNN2020 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.787 Shank

TUNGALOY CSDNN2020 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.787 Shank

ANSI: CSDNN2020

ISO: CSDNN2020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802484
Delivery date: 3-5 days
$110.20

Important Notes

Neg,D style, 45deg Approach

Details

Clamp-on toolholder with 45deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Lead Angle 45°
Overall Len 4.9213 125.00MM
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
