  • TUNGALOY CSBNR2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

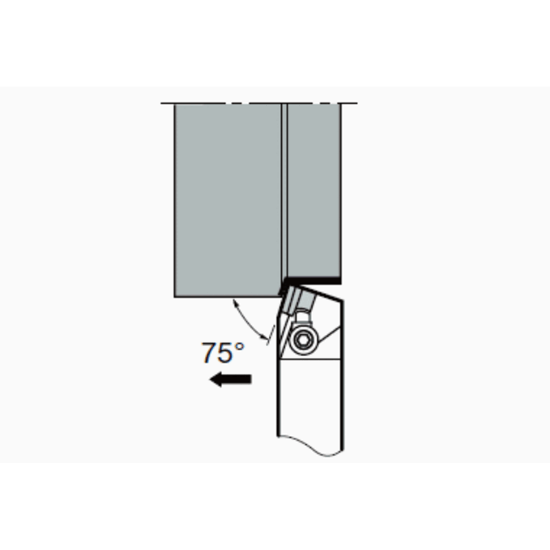

Picture of TUNGALOY CSBNR2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

TUNGALOY CSBNR2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

ANSI: CSBNR2525

ISO: CSBNR2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802477
Delivery date: 3-5 days
$128.25

Important Notes

Neg,B/R style, 75deg Approach

Details

Clamp-on toolholder with 75deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 12 "43"
Lead Angle 75°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.9055 150.00MM
Clearance Angle 10.0°
Cutting & Machining Properties
Inter/Extern External
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
