  • TUNGALOY CSBNL2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

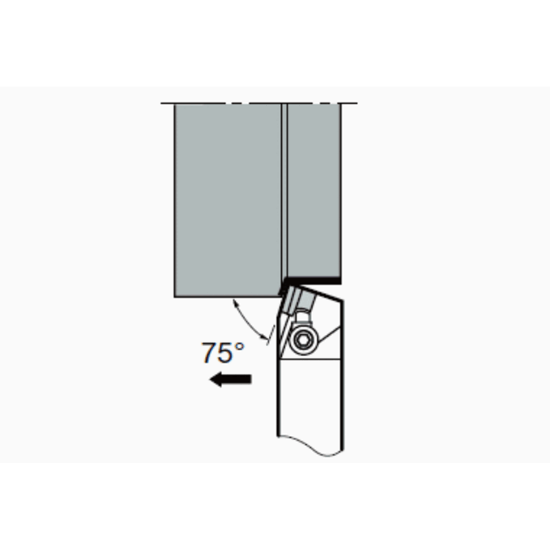

Picture of TUNGALOY CSBNL2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

TUNGALOY CSBNL2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

ANSI: CSBNL2525

ISO: CSBNL2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802475
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,B/R style, 75deg Approach

Details

Clamp-on toolholder with 75deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Lead Angle 75°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.9843 25.00MM
Clearance Angle 10.0°
Overall Len 5.9055 150.00MM
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Inter/Extern External
Insert Style SN
