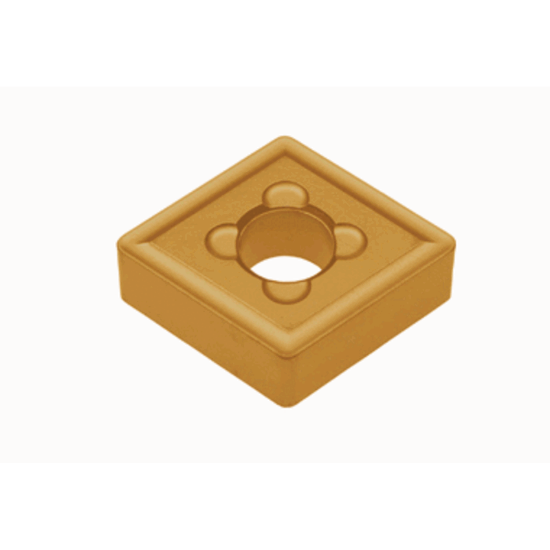

TUNGALOY CNMG643-33 T9215 Insert 80.0° TI + Al2O3 0.047 Corner Radius

ANSI: CNMG643-33 T9215

ISO: CNMG190612 33 T9215

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6773904
Delivery date: 3-5 days
$21.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

Negative relief ang., M class, 80deg rhombic insert, for medium cutting

File Downloads

DXFSTPSTPL

Grade and Coating Description

Well-balanced between wear and chipping resistance, First choice for steel, High versatility for a wide range of applications.

Products specifications
Attribute name Attribute value
General Product Information
Coating TI + Al2O3
Package Size 10
Grade T9215
Insert/Tool Insert
Insert Type Negative
Insert Application Roughing
Application Turning Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating <48HRC Steel
Insert Size Ic 19 "64"
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Carbide
