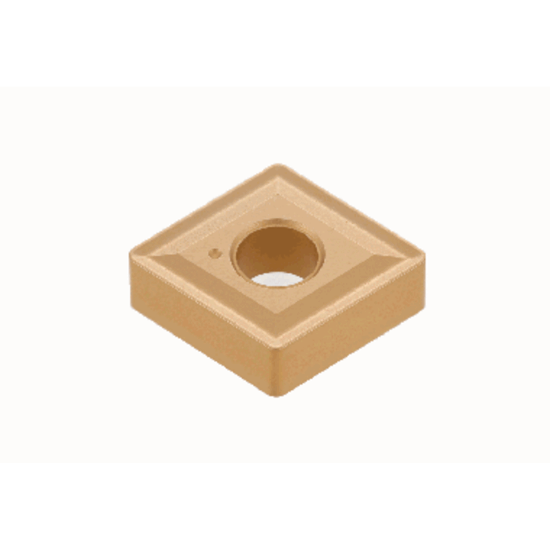

TUNGALOY CNMG433 NS520 Insert 80.0° 0.047 Corner Radius

ANSI: CNMG433 NS520

ISO: CNMG120412 NS520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802145
Delivery date: 3-5 days
$8.01

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Negative relief ang., M class, 80deg rhombic insert, all-round chipbreaker for medium cutting

File Downloads

DXFSTPSTPL

Grade and Coating Description

Finish turning of various steels and cast irons. Highly tough and wear resistant cermet for high speed finishing. Capable of running in wet cutting.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Grade NS520
Insert Type Negative
Insert Application Roughing
Application Turning Insert
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Corner Radius 0.0470 1.19MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
