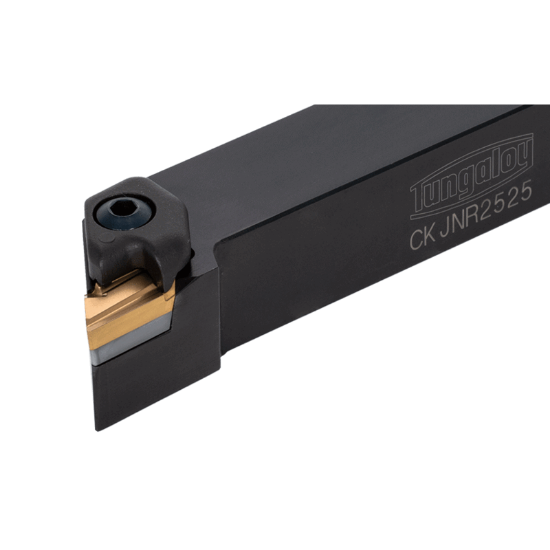

Picture of TUNGALOY CKJNR2525 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY CKJNR2525 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: CKJNR2525

ISO: CKJNR2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6801817
Delivery date: 3-5 days
$195.20

Important Notes

Neg,J style, 93deg Approach

Details

Clamp-on toolholder with 93deg approach angle, for negative 55deg parallelogram inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 93°
Insert Size Ic 16 "33
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Clearance Angle 30.0°
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Insert Style KN
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Hand R/L Right
