  • TUNGALOY CHSNR2525M0507-RD Stick Tool Hexagon Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

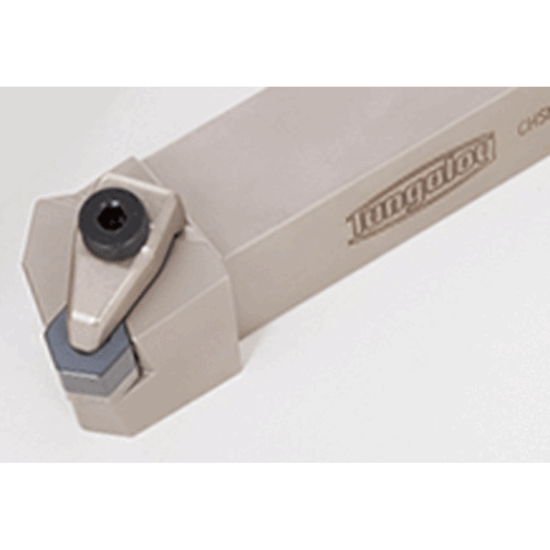

Picture of TUNGALOY CHSNR2525M0507-RD Stick Tool Hexagon Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY CHSNR2525M0507-RD Stick Tool Hexagon Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

ANSI: CHSNR2525M0507-RD

ISO: CHSNR2525M0507-RD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3604297
Delivery date: 3-5 days
$225.05

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder for ceramic insert with dimple, 45deg approach angle, for negative hexagonal inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 05 "45"
Lead Angle 45°
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Insert Style HN
Inter/Extern External
Hand R/L Right
