  • TUNGALOY CDNNN2525M1507-RD Stick Tool 55.0° Insert Neg,N style, 63deg Approach , Steel Square 0.984 Shank

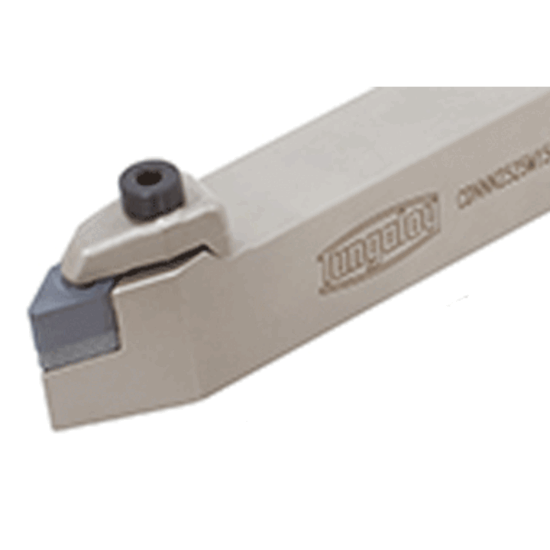

Picture of TUNGALOY CDNNN2525M1507-RD Stick Tool 55.0° Insert Neg,N style, 63deg Approach , Steel Square 0.984 Shank

TUNGALOY CDNNN2525M1507-RD Stick Tool 55.0° Insert Neg,N style, 63deg Approach , Steel Square 0.984 Shank

ANSI: CDNNN2525M1507-RD

ISO: CDNNN2525M1507-RD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6341257
Delivery date: 3-5 days
$225.05

Important Notes

Neg,N style, 63deg Approach

Details

Double-clamp toolholder for ceramic insert with dimple, 63deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 62.5°
Clearance Angle 57.0°
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 15 "45"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
