  • TUNGALOY CDJNR2525M1507-RD Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

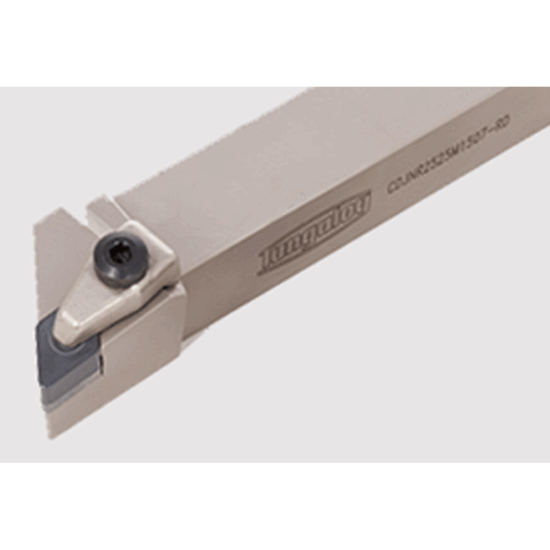

Picture of TUNGALOY CDJNR2525M1507-RD Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY CDJNR2525M1507-RD Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: CDJNR2525M1507-RD

ISO: CDJNR2525M1507-RD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6341255
Delivery date: 3-5 days
$225.05

Important Notes

Neg,J style, 93deg Approach

Details

Double-clamp toolholder for ceramic insert with dimple, 93deg approach angle, for negative 55deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 93°
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Clearance Angle 27.0°
Insert Size Ic 15 "45"
Cutting & Machining Properties
Hand R/L Right
Insert Style DN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
