  • TUNGALOY CCLNR3225P1207-RD Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

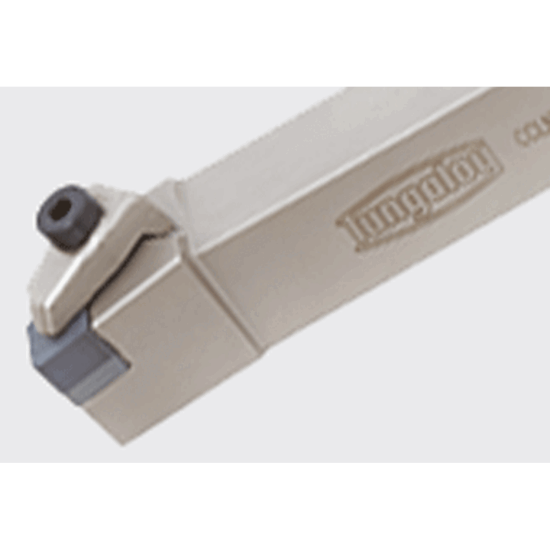

Picture of TUNGALOY CCLNR3225P1207-RD Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

TUNGALOY CCLNR3225P1207-RD Stick Tool 80.0° Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

ANSI: CCLNR3225P1207-RD

ISO: CCLNR3225P1207-RD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3602980
Delivery date: 3-5 days
$269.05

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholder for ceramic insert with dimple, 95deg approach angle, for negative 80deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.6929 170.00MM
Lead Angle 95°
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 12 "45"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CN
Inter/Extern External
