  • TUNGALOY C6TLA15M063R03L100 Milling Cutter Corn Cob 2.480 Cutter Diameter PSC "Capto Type"6 3.937 OAL 12 Flute

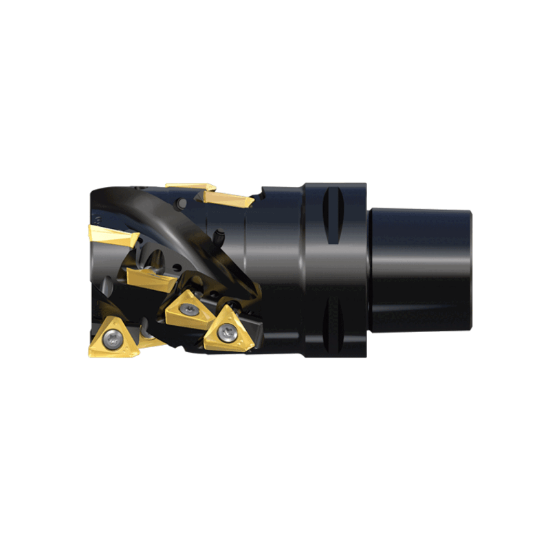

Picture of TUNGALOY C6TLA15M063R03L100 Milling Cutter Corn Cob 2.480 Cutter Diameter PSC "Capto Type"6 3.937 OAL 12 Flute

TUNGALOY C6TLA15M063R03L100 Milling Cutter Corn Cob 2.480 Cutter Diameter PSC "Capto Type"6 3.937 OAL 12 Flute

ANSI: C6TLA15M063R03L100

ISO: C6TLA15M063R03L100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6745438
Delivery date: 3-5 days
$1,713.99

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Flutes/Inserts 12
Tool Material Steel
Overall Len 3.9370 100.00MM
Depth Of Cut Max 2.7559
Cutter Dia 2.4800 62.99MM
Insert Size Ic 15
Machine Side Connection Type PSC "Capt0 Type"
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Fasteners & Connectors
Insert Screw 4352056
