  • TUNGALOY C6TDX300L139-3 30mm TungDrill Twisted Indexable Insert Drill s with "TungCap" Exchangeable Shanks, L/D=3

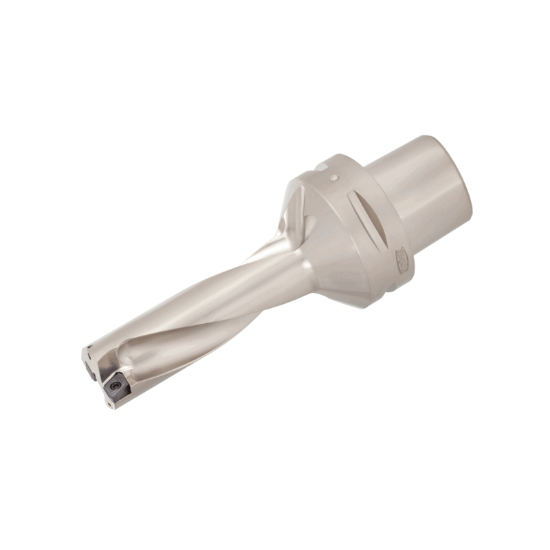

Picture of TUNGALOY C6TDX300L139-3 30mm TungDrill Twisted Indexable Insert Drill s with "TungCap" Exchangeable Shanks, L/D=3

TUNGALOY C6TDX300L139-3 30mm TungDrill Twisted Indexable Insert Drill s with "TungCap" Exchangeable Shanks, L/D=3

ISO: C6TDX300L139-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999161
Delivery date: 3-5 days
$596.60

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.1811 30.00MM
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 2.4803 63.00MM
Dia Deep 3.0XD
Shank/Pilot Dia 2.4803 63.00MM
Flutes/Inserts 2
Cutter Dia 1.1811 30.00MM
Flute Length 3.5710 90.70MM
Tool Material Steel
Overall Len 6.9972 177.73MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Mold Yes
Agricultural YES
Job Shop Yes
