  • TUNGALOY C6SVJCL45065-16 Quick Change Stick Tool 35.0° Insert ISO 26623 1 (TungCap) , Posi,J style, 93deg Approach , Steel PSC "Capto Type" 2.362 Shank

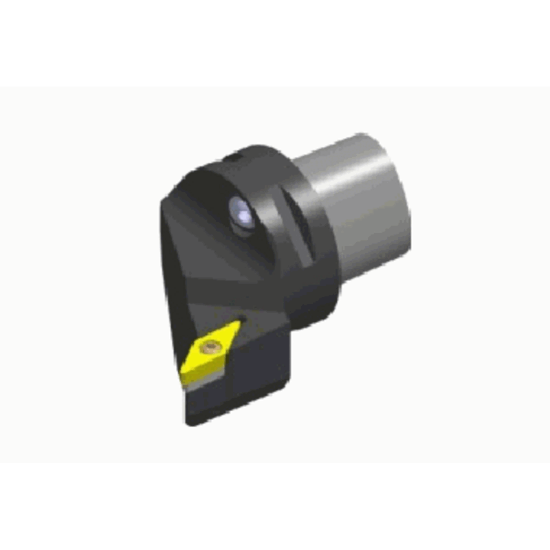

Picture of TUNGALOY C6SVJCL45065-16 Quick Change Stick Tool 35.0° Insert ISO 26623 1 (TungCap) , Posi,J style, 93deg Approach , Steel PSC "Capto Type" 2.362 Shank

TUNGALOY C6SVJCL45065-16 Quick Change Stick Tool 35.0° Insert ISO 26623 1 (TungCap) , Posi,J style, 93deg Approach , Steel PSC "Capto Type" 2.362 Shank

ANSI: C6SVJCL45065-16

ISO: C6SVJCL45065-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6885207
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

ISO 26623 1 (TungCap) Posi,J style, 93deg Approach

Details

TungCap Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 93°
Tool Material Steel
Insert Size Ic 16 "33"
Machine Side Connection Type PSC "Capt0 Type"
Overall Len 2.5590 65.00MM
Clearance Angle 50.0°
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
