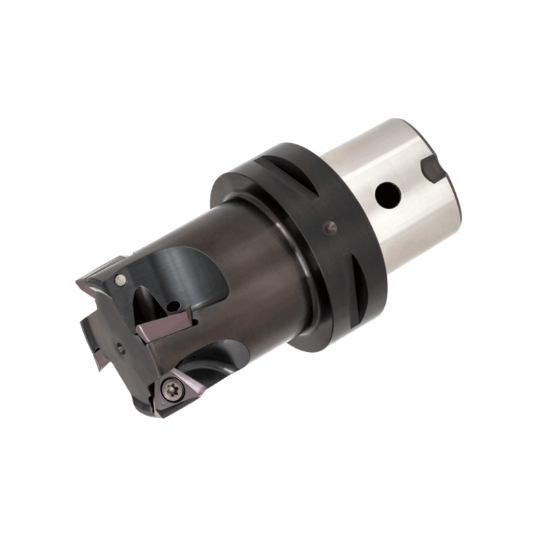

Picture of TUNGALOY C6EPA15M050R04L080 Milling Cutter 90.0° 1.967 Cutter Diameter PSC "Capto Type"6 4 Flute

TUNGALOY C6EPA15M050R04L080 Milling Cutter 90.0° 1.967 Cutter Diameter PSC "Capto Type"6 4 Flute

ANSI: C6EPA15M050R04L080

ISO: C6EPA15M050R04L080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6745437
Delivery date: 3-5 days
$497.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Face Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Cut Dia Min 1.9690 50.01MM
Insert Size Ic 15
Cutter Dia 1.9670 49.96MM
Flutes/Inserts 4
Tool Material Steel
Cut Dia Max 1.9690 50.01MM
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Depth Of Cut Max 2.1654
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4352056
