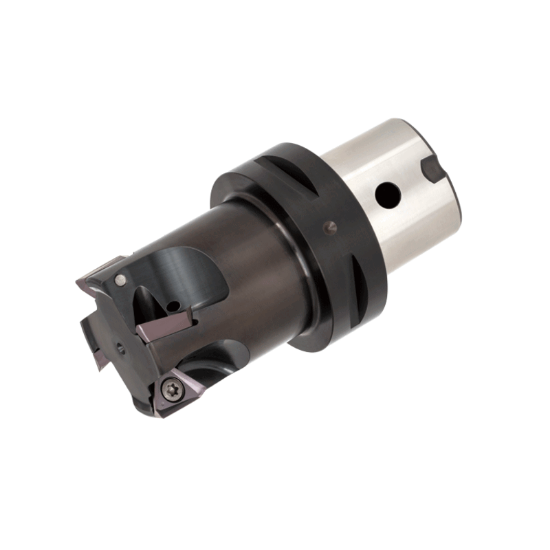

Picture of TUNGALOY C6EPA15M040R03L080 Milling Cutter 90.0° 1.575 Cutter Diameter PSC "Capto Type"6 3 Flute

TUNGALOY C6EPA15M040R03L080 Milling Cutter 90.0° 1.575 Cutter Diameter PSC "Capto Type"6 3 Flute

ANSI: C6EPA15M040R03L080

ISO: C6EPA15M040R03L080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6745436
Delivery date: 3-5 days
$414.66

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 15
Cutter Dia 1.5750 40.01MM
Cut Dia Min 1.5750 40.01MM
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Flutes/Inserts 3
Cut Dia Max 1.5750 40.01MM
Depth Of Cut Max 0.5906
Machine Side Connection Type PSC "Capt0 Type"
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TO
Hand R/L Right
Fasteners & Connectors
Insert Screw 4352056
