  • TUNGALOY C5ADNNN00090-15N Quick Change Stick Tool 55.0° Insert ISO 26623 1 (TungCap) , Neg,N style, 63deg Approach , Steel PSC "Capto Type" 1.968 Shank

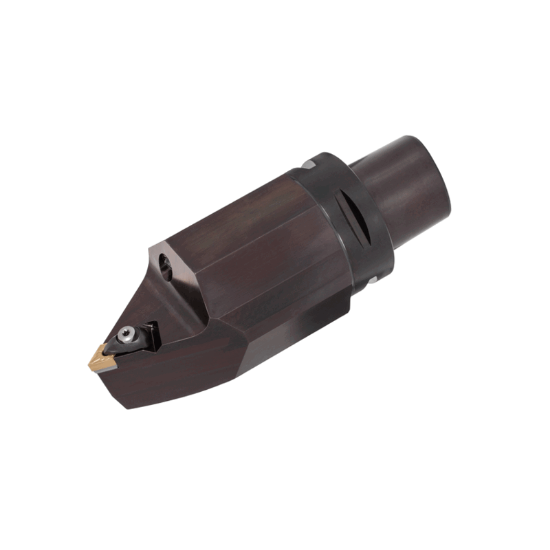

Picture of TUNGALOY C5ADNNN00090-15N Quick Change Stick Tool 55.0° Insert ISO 26623 1 (TungCap) , Neg,N style, 63deg Approach , Steel PSC "Capto Type" 1.968 Shank

TUNGALOY C5ADNNN00090-15N Quick Change Stick Tool 55.0° Insert ISO 26623 1 (TungCap) , Neg,N style, 63deg Approach , Steel PSC "Capto Type" 1.968 Shank

ANSI: C5ADNNN00090-15N

ISO: C5ADNNN00090-15N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995453
Delivery date: 3-5 days
$268.62

Important Notes

ISO 26623 1 (TungCap) Neg,N style, 63deg Approach

Details

TungCap Double-clamp toolholder with 63deg approach angle, for negative 55deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Lead Angle 62.5°
Machine Side Connection Type PSC "Capt0 Type"
Clearance Angle 60.0°
Tool Material Steel
Overall Len 3.5430 89.99MM
Insert Size Ic 12 "43"
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Min Bore 6.4960
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
