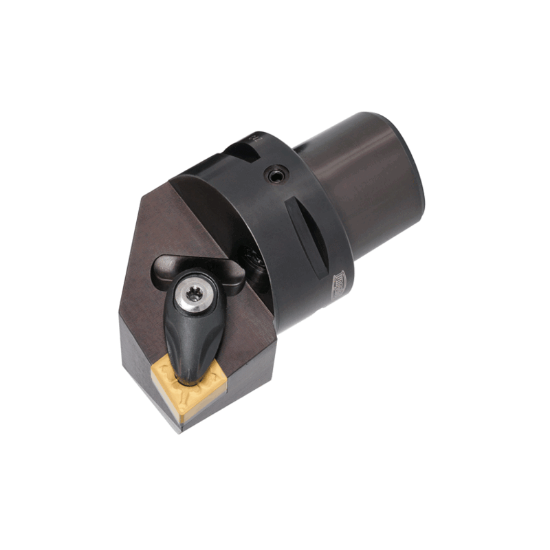

Picture of TUNGALOY C5ACLNR35060-12N Quick Change Stick Tool 80.0° Steel PSC "Capto Type" 1.968 Shank

TUNGALOY C5ACLNR35060-12N Quick Change Stick Tool 80.0° Steel PSC "Capto Type" 1.968 Shank

ANSI: C5ACLNR35060-12N

ISO: C5ACLNR35060-12N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995441
Delivery date: 3-5 days
$268.62

Details

TungCap Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Overall Len 2.3620 59.99MM
Machine Side Connection Type PSC "Capt0 Type"
Min Bore 4.3310
Shank/Pilot Dia 1.9685 50.00MM
Insert Size Ic 12 "43"
Machine Side Connection Size 1.9685 50.00MM
Lead Angle 95°
Tool Material Steel
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
