  • TUNGALOY C4TDX150L082-3 15mm TungDrill Twisted Indexable Insert Drill s with "TungCap" Exchangeable Shanks, L/D=3

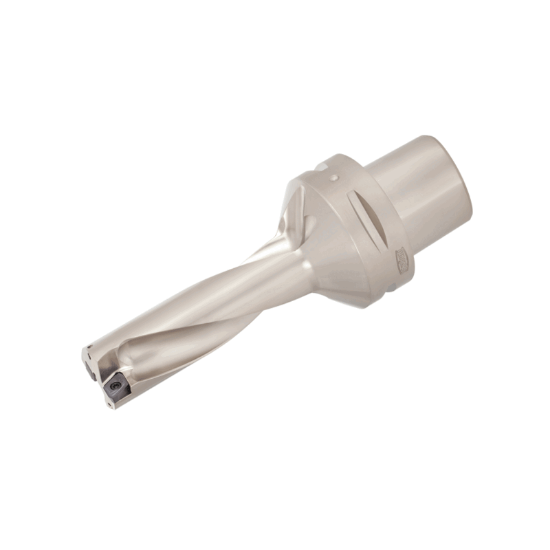

Picture of TUNGALOY C4TDX150L082-3 15mm TungDrill Twisted Indexable Insert Drill s with "TungCap" Exchangeable Shanks, L/D=3

TUNGALOY C4TDX150L082-3 15mm TungDrill Twisted Indexable Insert Drill s with "TungCap" Exchangeable Shanks, L/D=3

ISO: C4TDX150L082-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6714831
Delivery date: 3-5 days
$429.97

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.5906 15.00MM
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 2
Flute Length 1.7910 45.49MM
Machine Side Connection Size 1.5748 40.00MM
Dia Deep 3.0XD
Tool Material Steel
Overall Len 4.1941 106.53MM
Cut Dia Min 0.5906 15.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
