  • TUNGALOY C4PCLNR27050-0904-CHP Quick Change Stick Tool 80.0° Insert EcoTurn Toolholders , ISO 26623 1 (TungCap) , Neg,L style, 95deg Approach , Steel PSC "Capto Type" 1.574 Shank

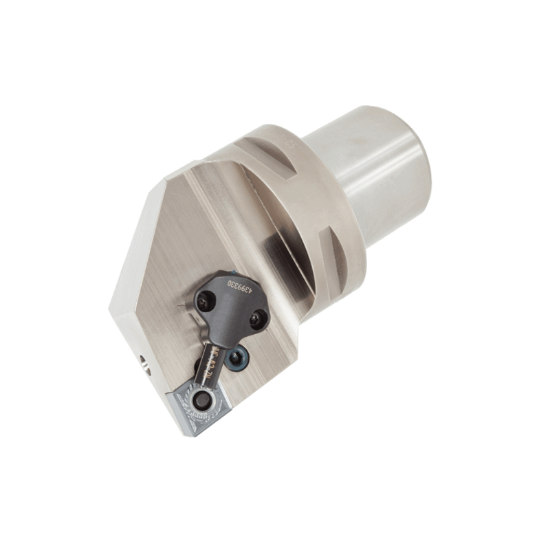

Picture of TUNGALOY C4PCLNR27050-0904-CHP Quick Change Stick Tool 80.0° Insert EcoTurn Toolholders , ISO 26623 1 (TungCap) , Neg,L style, 95deg Approach , Steel PSC "Capto Type" 1.574 Shank

TUNGALOY C4PCLNR27050-0904-CHP Quick Change Stick Tool 80.0° Insert EcoTurn Toolholders , ISO 26623 1 (TungCap) , Neg,L style, 95deg Approach , Steel PSC "Capto Type" 1.574 Shank

ANSI: C4PCLNR27050-0904-CHP

ISO: C4PCLNR27050-0904-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6745388
Delivery date: 3-5 days
$432.97

Important Notes

EcoTurn Toolholders ISO 26623 1 (TungCap) Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, with channels for high pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Overall Len 1.9690 50.01MM
Machine Side Connection Type PSC "Capt0 Type"
Min Bore 4.3310
Machine Side Connection Size 1.5748 40.00MM
Insert Size Ic 09 "32"
Shank/Pilot Dia 1.5748 40.00MM
Lead Angle 95°
Tool Material Steel
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
