  • TUNGALOY C4PCLNR17090-0904 Quick Change Stick Tool 80.0° Insert EcoTurn Boring Bars , ISO 26623 1 (TungCap) , Neg,L style, 95deg Approach , Steel PSC "Capto Type" 1.574 Shank

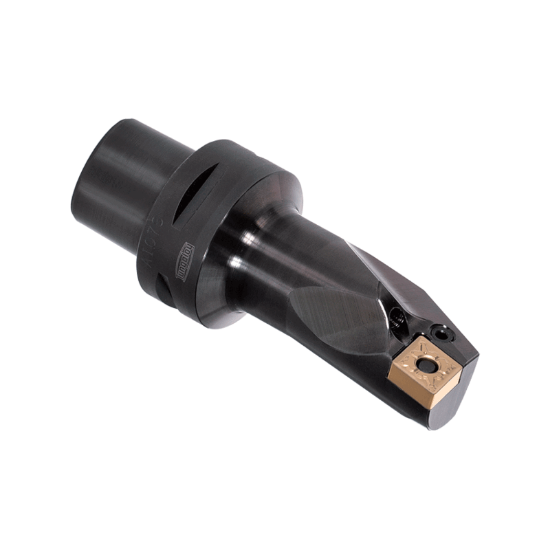

Picture of TUNGALOY C4PCLNR17090-0904 Quick Change Stick Tool 80.0° Insert EcoTurn Boring Bars , ISO 26623 1 (TungCap) , Neg,L style, 95deg Approach , Steel PSC "Capto Type" 1.574 Shank

TUNGALOY C4PCLNR17090-0904 Quick Change Stick Tool 80.0° Insert EcoTurn Boring Bars , ISO 26623 1 (TungCap) , Neg,L style, 95deg Approach , Steel PSC "Capto Type" 1.574 Shank

ANSI: C4PCLNR17090-0904

ISO: C4PCLNR17090-0904

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6745410
Delivery date: 3-5 days
$335.50

Important Notes

EcoTurn Boring Bars ISO 26623 1 (TungCap) Neg,L style, 95deg Approach

Details

TungCap Lever lock type boring bar, for negative 80deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 09 "32"
Shank/Pilot Dia 1.5748 40.00MM
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 1.5748 40.00MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Min Bore 1.2600
Lead Angle 95°
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
