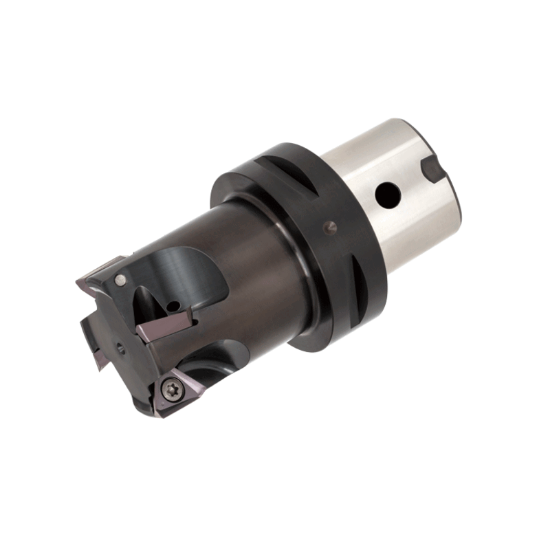

Picture of TUNGALOY C4EPA10M035R03L065 Milling Cutter 90.0° 1.378 Cutter Diameter PSC "Capto Type"4 3 Flute

TUNGALOY C4EPA10M035R03L065 Milling Cutter 90.0° 1.378 Cutter Diameter PSC "Capto Type"4 3 Flute

ANSI: C4EPA10M035R03L065

ISO: C4EPA10M035R03L065

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6745435
Delivery date: 3-5 days
$424.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 3
Depth Of Cut Max 0.5906
Cut Dia Min 1.3780 35.00MM
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Cutter Dia 1.3780 35.00MM
Cut Dia Max 1.3780 35.00MM
Machine Side Connection Size 1.5748 40.00MM
Insert Size Ic 10
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Fasteners & Connectors
Insert Screw 7002353
