  • TUNGALOY AWLNR2525X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

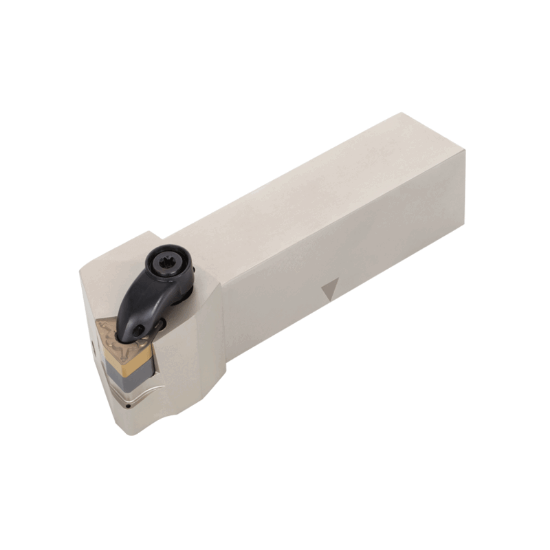

Picture of TUNGALOY AWLNR2525X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

TUNGALOY AWLNR2525X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

ANSI: AWLNR2525X-08-CHP-MC

ISO: AWLNR2525X-08-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3336573
Delivery date: 3-5 days
$308.50

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholders with 95deg approach angle for negative trigon inserts with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 95°
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Overall Len 4.7638 121.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Style WN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
