  • TUNGALOY AWLNR2020X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.787 Shank

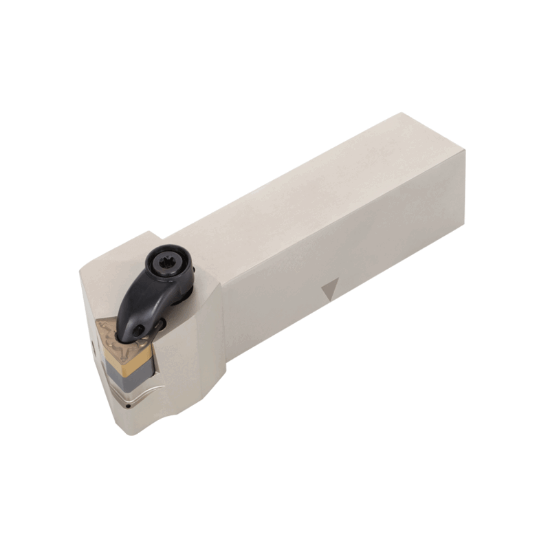

Picture of TUNGALOY AWLNR2020X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.787 Shank

TUNGALOY AWLNR2020X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.787 Shank

ANSI: AWLNR2020X-08-CHP-MC

ISO: AWLNR2020X-08-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346704
Delivery date: 3-5 days
$274.10

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholders with 95deg approach angle for negative trigon inserts with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Dimensional Specifications
Overall Len 4.1732 106.00MM
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7874 20.00MM
Lead Angle 95°
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Style WN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
