  • TUNGALOY AWLNR16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

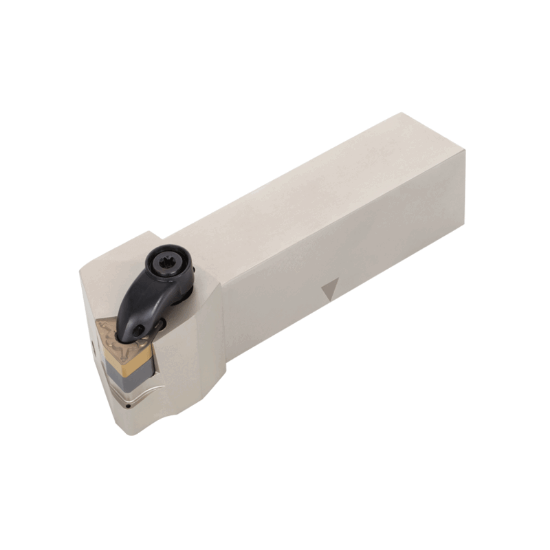

Picture of TUNGALOY AWLNR16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

TUNGALOY AWLNR16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

ANSI: AWLNR16-4-CHP-MC

ISO: AWLNR16-4-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346706
Delivery date: 3-5 days
$308.50

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholders with 95deg approach angle for negative trigon inserts with high pressure coolant channels

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Lead Angle 95°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Hand R/L Right
