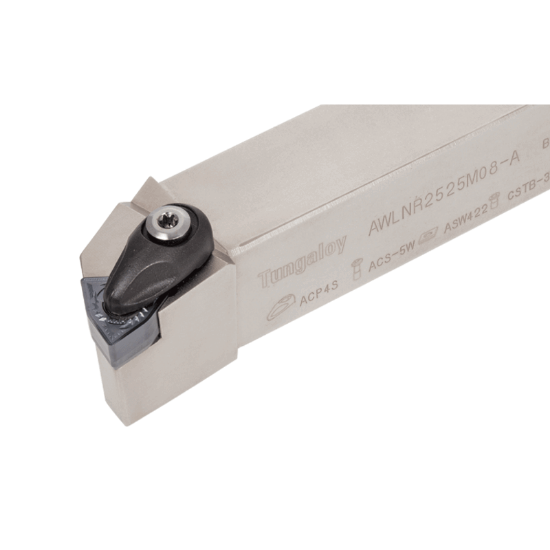

Picture of TUNGALOY AWLNR123-A Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

TUNGALOY AWLNR123-A Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

ANSI: AWLNR123-A

ISO: AWLNR123-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864837
Delivery date: 3-5 days
$116.10

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholder with 95deg approach angle, for negative trigon inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 06 "33"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 95°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern External
Insert Style WN
Hand R/L Right
