  • TUNGALOY AWLNL2020X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.787 Shank

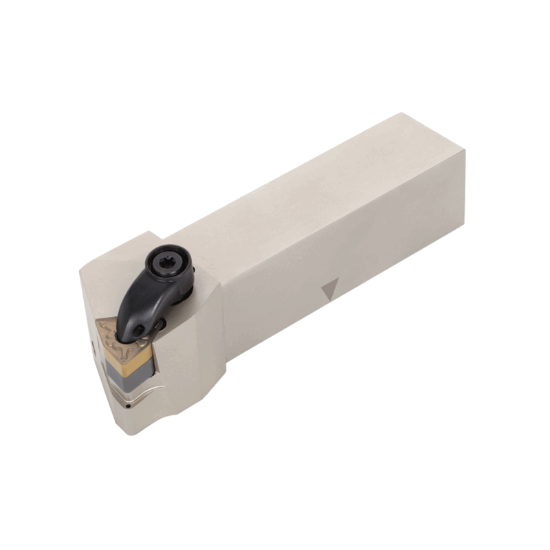

Picture of TUNGALOY AWLNL2020X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.787 Shank

TUNGALOY AWLNL2020X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.787 Shank

ANSI: AWLNL2020X-08-CHP-MC

ISO: AWLNL2020X-08-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346705
Delivery date: 3-5 days
$274.10

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholders with 95deg approach angle for negative trigon inserts with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12 "43"
Lead Angle 95°
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Size 0.7874 20.00MM
Overall Len 4.1732 106.00MM
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style WN
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
