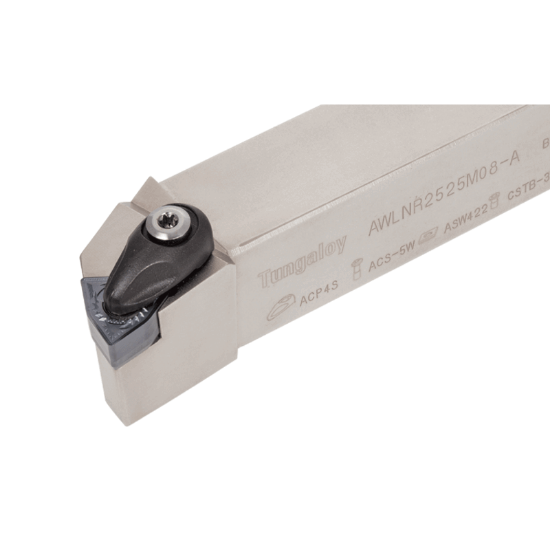

Picture of TUNGALOY AWLNL124-A Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

TUNGALOY AWLNL124-A Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

ANSI: AWLNL124-A

ISO: AWLNL124-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853115
Delivery date: 3-5 days
$116.10

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholder with 95deg approach angle, for negative trigon inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Lead Angle 95°
Cutting & Machining Properties
Inter/Extern External
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Left
