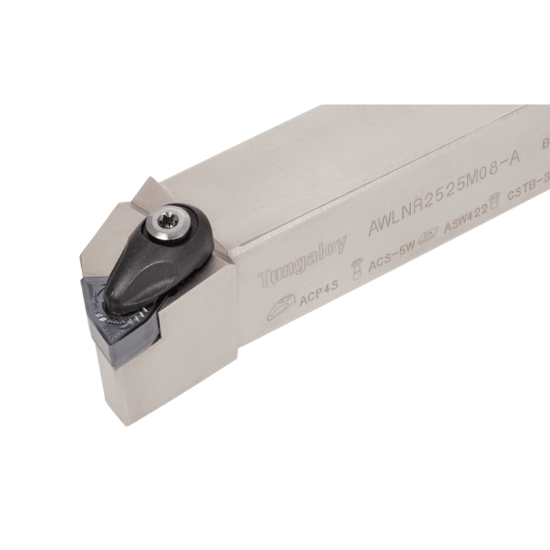

Picture of TUNGALOY AWLNL123-A Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

TUNGALOY AWLNL123-A Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

ANSI: AWLNL123-A

ISO: AWLNL123-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864819
Delivery date: 3-5 days
$116.10

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholder with 95deg approach angle, for negative trigon inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Lead Angle 95°
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 06 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
