  • TUNGALOY AVVNN2525M16-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.984 Shank

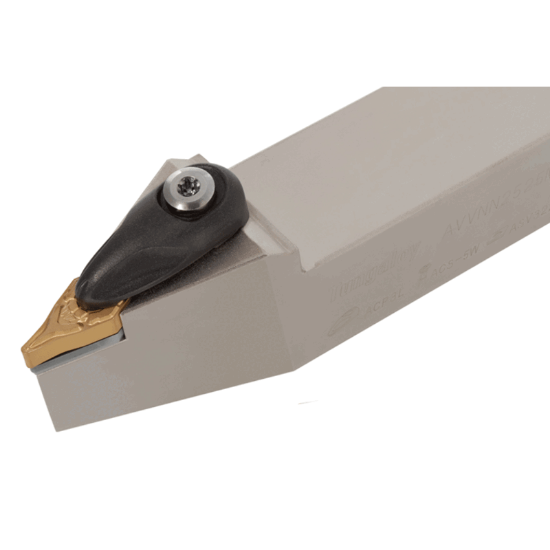

Picture of TUNGALOY AVVNN2525M16-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.984 Shank

TUNGALOY AVVNN2525M16-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.984 Shank

ANSI: AVVNN2525M16-A

ISO: AVVNN2525M16-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852788
Delivery date: 3-5 days
$165.10

Important Notes

Neg,V style, 72.5deg Approach

Details

Double-clamp toolholder with 72.5deg approach angle, for negative 35deg and 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 72°
Clearance Angle 70.0°
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 16 "33"
Overall Len 5.9055 150.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Neutral
