  • TUNGALOY AVVNN2020K16-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.787 Shank

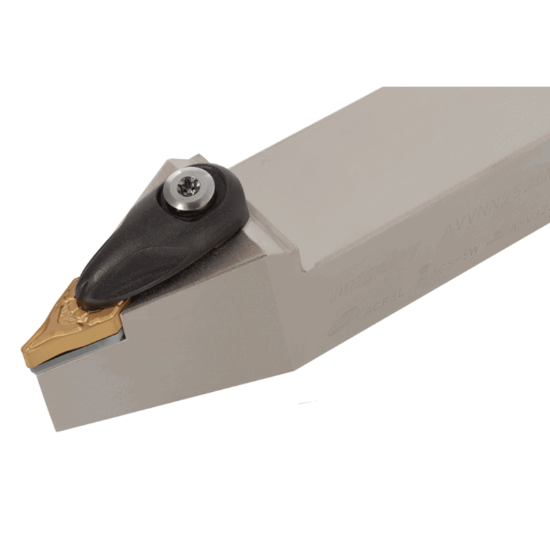

Picture of TUNGALOY AVVNN2020K16-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.787 Shank

TUNGALOY AVVNN2020K16-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.787 Shank

ANSI: AVVNN2020K16-A

ISO: AVVNN2020K16-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852787
Delivery date: 3-5 days
$162.15

Important Notes

Neg,V style, 72.5deg Approach

Details

Double-clamp toolholder with 72.5deg approach angle, for negative 35deg and 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Insert/Tool Tool
Dimensional Specifications
Lead Angle 72°
Overall Len 4.9213 125.00MM
Insert Size Ic 16 "33"
Clearance Angle 70.0°
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Neutral
Insert Style VN
Inter/Extern External
