  • TUNGALOY AVVNN123-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.750 Shank

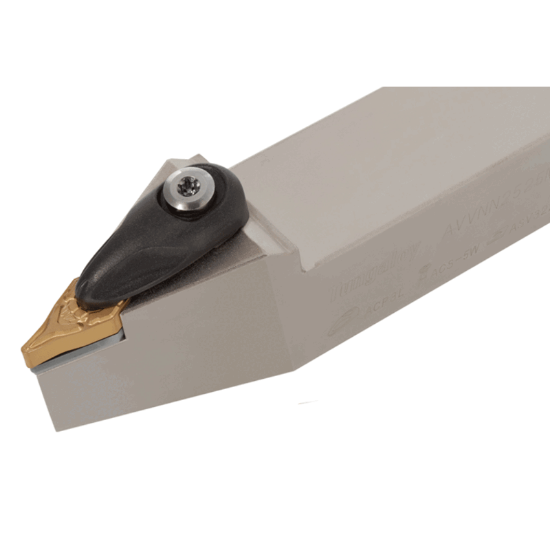

Picture of TUNGALOY AVVNN123-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.750 Shank

TUNGALOY AVVNN123-A Stick Tool 35.0° Insert Neg,V style, 72.5deg Approach , Steel Square 0.750 Shank

ANSI: AVVNN123-A

ISO: AVVNN123-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853141
Delivery date: 3-5 days
$162.15

Important Notes

Neg,V style, 72.5deg Approach

Details

Double-clamp toolholder with 72.5deg approach angle, for negative 35deg and 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 72°
Overall Len 4.5000 114.30MM
Clearance Angle 70.0°
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Neutral
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VN
