  • TUNGALOY AVVNN122.33-A Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,V style, 72.5deg Approach , Steel Square 0.750 Shank

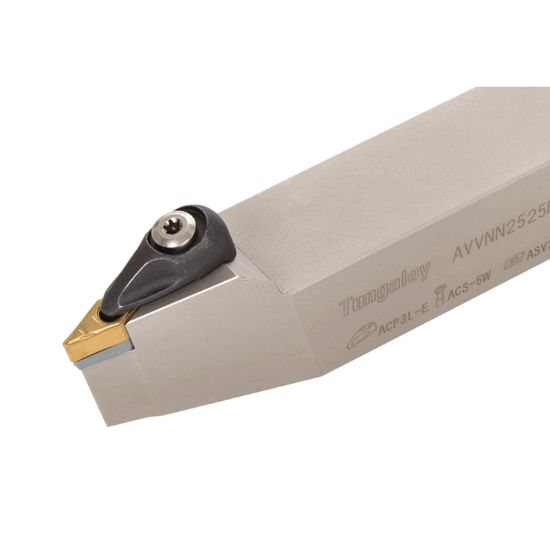

Picture of TUNGALOY AVVNN122.33-A Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,V style, 72.5deg Approach , Steel Square 0.750 Shank

TUNGALOY AVVNN122.33-A Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,V style, 72.5deg Approach , Steel Square 0.750 Shank

ANSI: AVVNN122.33-A

ISO: AVVNN122.33-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6759387
Delivery date: 3-5 days
$162.15

Important Notes

EcoTurn Toolholders Neg,V style, 72.5deg Approach

Details

Double-clamp toolholders with 72.5deg approach angle for negative 35deg rhombic inserts VN**2.33...

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Clearance Angle 70.0°
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Lead Angle 72.5°
Insert Size Ic 12 "2.3"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Neutral
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
