  • TUNGALOY AVQNR163-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 1.000 Shank

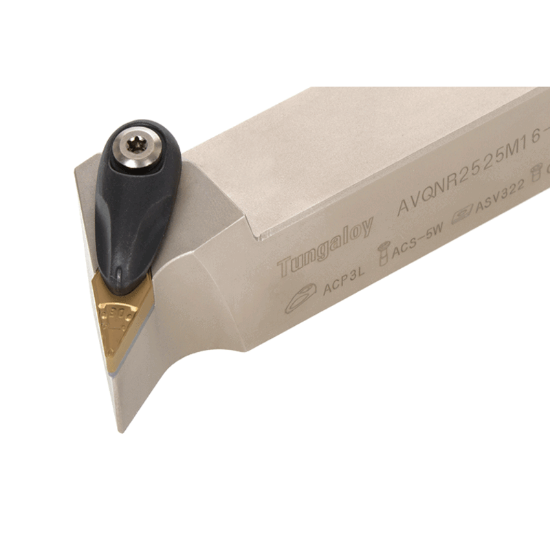

Picture of TUNGALOY AVQNR163-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 1.000 Shank

TUNGALOY AVQNR163-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 1.000 Shank

ANSI: AVQNR163-A

ISO: AVQNR163-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853127
Delivery date: 3-5 days
$165.10

Important Notes

Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholder with 117.5deg approach angle, for negative 35deg or 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 117.5°
Clearance Angle 25.0°
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
