  • TUNGALOY AVQNR123-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

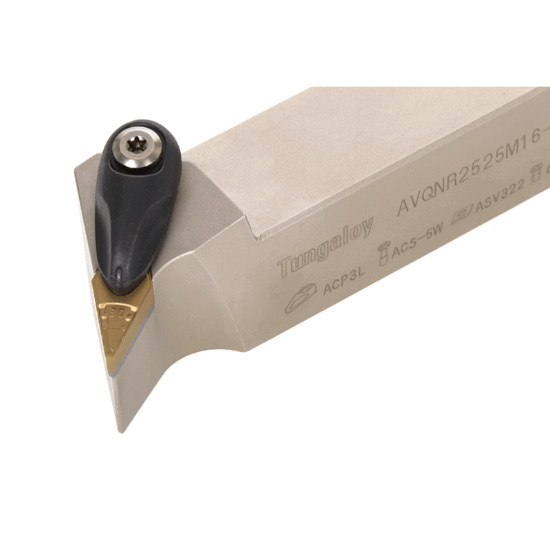

Picture of TUNGALOY AVQNR123-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

TUNGALOY AVQNR123-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

ANSI: AVQNR123-A

ISO: AVQNR123-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6853119
Delivery date: 3-5 days
$162.15

Important Notes

Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholder with 117.5deg approach angle, for negative 35deg or 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Type Negative
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 117.5°
Clearance Angle 25.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.5000 114.30MM
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
Hand R/L Right
