  • TUNGALOY AVQNL2020K16-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

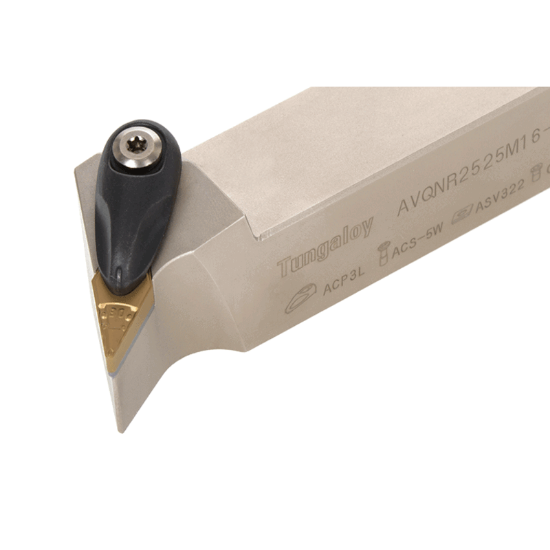

Picture of TUNGALOY AVQNL2020K16-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

TUNGALOY AVQNL2020K16-A Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

ANSI: AVQNL2020K16-A

ISO: AVQNL2020K16-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852783
Delivery date: 3-5 days
$162.15

Important Notes

Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholder with 117.5deg approach angle, for negative 35deg or 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 117.5°
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Clearance Angle 25.0°
Overall Len 4.9213 125.00MM
Cutting & Machining Properties
Insert Style VN
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
