  • TUNGALOY AVQNL122.33-A Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

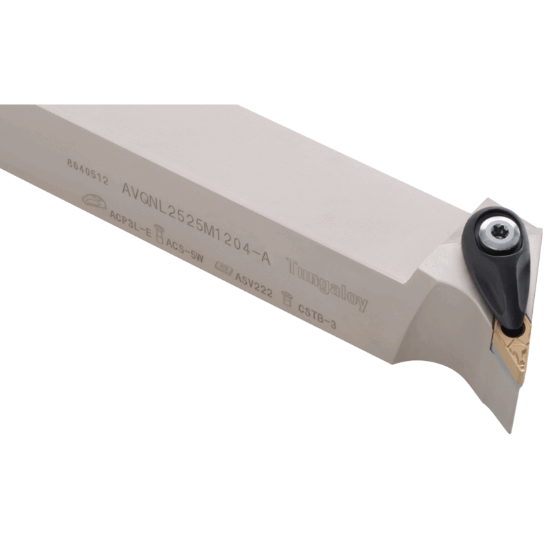

Picture of TUNGALOY AVQNL122.33-A Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

TUNGALOY AVQNL122.33-A Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

ANSI: AVQNL122.33-A

ISO: AVQNL122.33-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6759384
Delivery date: 3-5 days
$162.15

Important Notes

EcoTurn Toolholders Neg,Q/H style, 45deg Approach

Details

Double-clamp toolholders with 117.5deg approach angle for negative 35deg rhombic inserts VN**2.33...

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 117.5°
Machine Side Connection Type Stick Tool
Clearance Angle 25.0°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Style VN
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
